Berlin Line

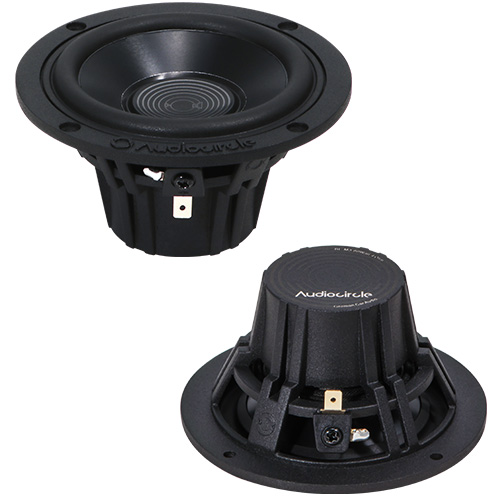

Music enthusiast please listen! The BL Line is the Performance Series in our product range. Components that combine very good audiophile parameters with high performance. For those who like to have a bit more, this is the right choice. A wolf in sheep’s clothing, which also sounds very good… Audiocircle aluminium die-cast basket and a cone made of an aluminium-paper composite material.
Berlin Line 6.5″
2-way component speakers
230102 · BL-C6.2
2 Wegesystem / 2-way set
BL-C6.2
2-way 6.5 inch (16,5cm) Compo Set
black aluminium-paper compound cone,
6.5″ black die cast aluminium basket,
26 mm Silk dome Tweeter with acoustic chamber
crossover 2 x 12 dB
Handling Power: 180 W
Min. AMP power: 35 Watt
Frequency Response: 35 – 30.000 Hz
Impendance: 4 Ohm
Mounting diameter: 165 mm DiN
Mounting Debth: 66 mm
Berlin Line 6.5″
2-way Active component speakers
230108 · BL-C6.2A
2 Wegesystem aktiv / 2-way set active
BL-C6.2 active
2-way 6.5 inch (16,5cm) Compo Set
black aluminium-paper compound cone,
6.5″ black die cast aluminium basket,
26 mm Silk dome Tweeter with acoustic chamber
Handling Power: 180 W
Min. AMP power: 35 Watt
Frequency Response: 35 – 30.000 Hz
Impendance: 4 Ohm
Mounting diameter: 165 mm DiN
Mounting Debth: 66 mm
Berlin Line 6.5″
woofer speakers
230106 · BL-W6
Midwoofer Paar / Midwoofer pair
BL-W6
6.5 inch (16,5cm) Woofer Set
black aluminium-paper compound cone,
6.5″ black die cast aluminium basket,
Handling Power: 180W
Min. AMP power: 35 Watt
Frequency Response: 35 – 6.000 Hz
Impendance: 4 Ohm
Mounting diameter: 165 mm DiN
Mounting Debth: 66 mm
Berlin Line 3″
Midrange speakers
230105 · BL-M3
MR Paar / MR pair
Midrange Set BL-M3 P
3 inch (8cm) Midrange Set
black aluminium cone,
3″ die cast aluminium basket
Handling Power: 75 W
Min. AMP power: 15 Watt
Frequency Response: 65 – 15.000 Hz
Impendance: 4 Ohm
Mounting diameter: 90 mm DiN
Mounting Debth: 66 mm
Berlin Line
tweeters
230122 · BL-T26
Hochtöner Paar / tweeter pair
BL-T 26
26 mm Tweeter set
26 mm Silk dome Tweeter with acoustic chamber
Handling Power: 60 W (with recom. xover!)
Min. AMP power: 5 Watt
Frequency Response: 2.200 – 30.000 Hz
Impendance: 4 Ohm
Mounting diameter: 44 mm
Mounting Debth: 22 mm
Berlin Line
tweeters
230127 · BL-T22
Hochtöner Paar / tweeter pair
BL-T 22
22 mm Tweeter set
22 mm Silk dome Tweeter with acoustic chamber
Handling Power: 40 W (with recom. xover!)
Min. AMP power: 5 Watt
Frequency Response: 2.600 – 30.000 Hz
Impendance: 4 Ohm
Mounting diameter: 37 mm
Mounting Debth: 20 mm
Berlin Line
2-way crossover
250122 · BL-XO6.2
Weichen Paar / Xover pair
BL-XO2
2 Way X-over
Berlin Line
3-way crossover for MD + TW
250123 · BL-XO6.3MT
Weichen Satz / Xover pair
BL-XO3
3 Way X-over MT midrange/tweeter
Berlin Line
3-way crossover for WF + MD
250126 · BL-XO6.3WM
Weichen Paar / Xover pair
BL-XO3
3 Way X-over WM woofer/midrange
